Mechanical Suspension Axle Lifting System
Keywords:
Product details
Product Description

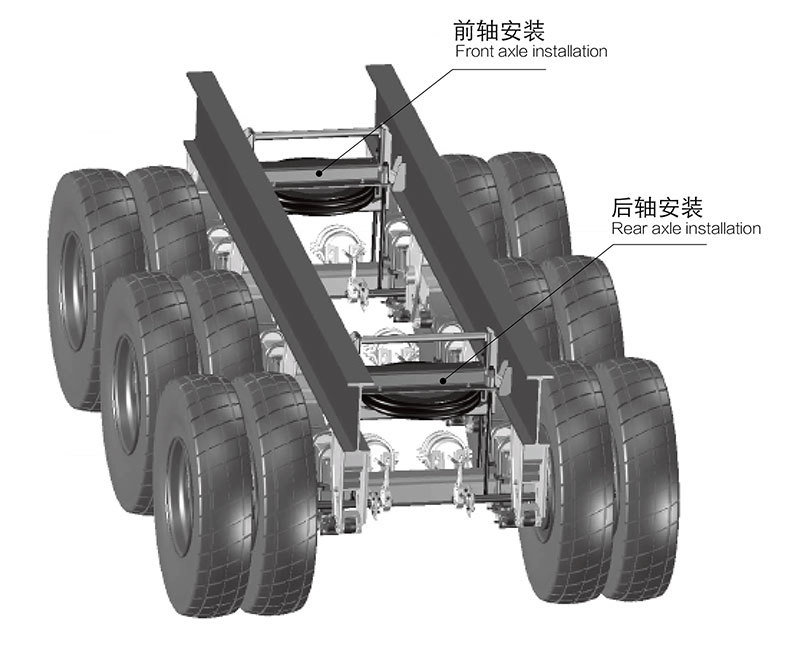

The mechanical suspension axle lifting system is suitable for semi-trailer vehicles equipped with mechanical suspension. It can realize the function of no-load lifting of the axle without installing a whole set of air suspension. It can be installed on the front axle and the rear axle at the same time, which is very convenient to install. 2 axes can be lifted at the same time. The power of the lifting system can come from the on-board air source, and the axle can be lifted or released with one action
|
|
This system is applicable to the front and rear axle or front and rear axle of mechanical suspension when the object is unloaded ► This system uses high-strength materials and imported brand airbags, imported brand pneumatic components ► This system can reduce the contact between the tire and the ground, especially when the vehicle turns in situ, it can effectively reduce the lateral movement of the tire. After the front rear axle is equipped with a lifting system, the lateral movement of the tire is completely avoided and the turning radius is small. When the tire is severely worn, the bearing is seriously damaged, and even the tire blows out. ► Benefits of Axle Lift Off the Ground. ► Reduce tire wear、Reduced Suspension Wear、Reduce low consumption、Improve vehicle passability、Reduce the wear of accessories such as bearing brake drum friction pads、Improve vehicle handling. |

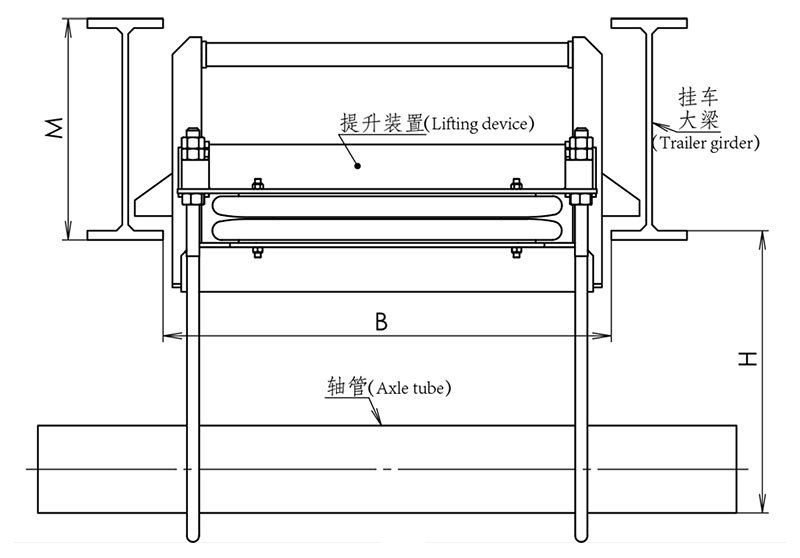

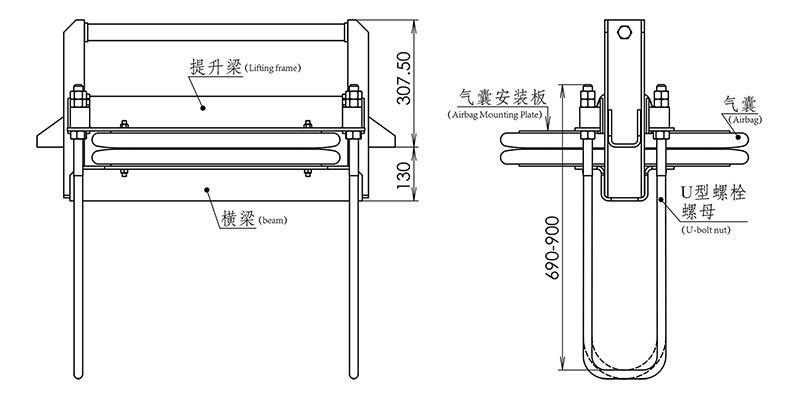

Technical Parameter
Lifting height: 45-100mm
Working pressure: 0.75-0.85Mpa (7.5-8.5kgf)

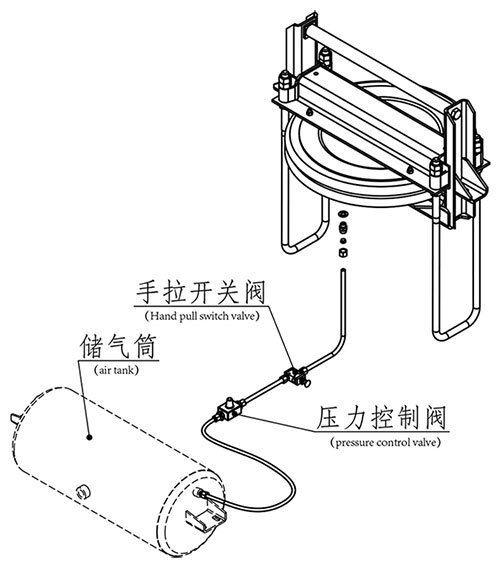

Gas circuit connection diagram
Order technical parameters
